This lab exercise is due 23:59 Monday 29 March (NZDT).

  • You should submit an R file (i.e. file extension .R) containing R code that assigns the appropriate values to the appropriate symbols.
  • Your R file will be executed in order and checked against the values that have been assigned to the symbols using an automatic grading system. Marks will be fully deducted for non-identical results.
  • Intermediate steps to achieve the final results will NOT be checked.
  • Each question is worth 0.2 points.
  • You should submit your R file on Canvas.
  • Late assignments are NOT accepted unless prior arrangement for medical/compassionate reasons.

In this lab exercise, you are going to work with a data set: villagers for Animal Crossing - New Horizons as in villagers.csv. You shall use the following code to start with this lab session:

library(tidyverse)
villagers <- read_csv("data/animal-crossing/villagers.csv")
villagers

#> # A tibble: 391 x 11
#>    row_n id     name  gender species birthday personality song  phrase
#>    <dbl> <chr>  <chr> <chr>  <chr>   <chr>    <chr>       <chr> <chr>
#>  1     2 admir… Admi… male   bird    1-27     cranky      Stee… aye a…
#>  2     3 agent… Agen… female squirr… 7-2      peppy       DJ K… sidek…
#>  3     4 agnes  Agnes female pig     4-21     uchi        K.K.… snuff…
#>  4     6 al     Al    male   gorilla 10-18    lazy        Stee… Ayyee…
#>  5     7 alfon… Alfo… male   alliga… 6-9      lazy        Fore… it'sa…
#>  6     8 alice  Alice female koala   8-19     normal      Surf… guvnor
#>  7     9 alli   Alli  female alliga… 11-8     snooty      K.K.… graaa…
#>  8    10 amelia Amel… female eagle   11-19    snooty      K.K.… eaglet
#>  9    11 anabe… Anab… female anteat… 2-16     peppy       Aloh… snorty
#> 10    13 ancho… Anch… male   bird    3-4      lazy        K.K.… chuurp
#> # … with 381 more rows, and 2 more variables: full_id <chr>,
#> #   url <chr>
  • Make sure to include the snippet above upfront in your R file.

Suppose that you have created an Rproj for this course. You need to download villagers.csv here (right click, select “Save link as”/“Download Linked File As”) to data/animal-crossing/ under your Rproj folder.

  • You’re required to use relative file paths data/animal-crossing/villagers.csv to import the data.
  • NO marks will be given for using URL links or different file paths.
  • DO NOT include install.packages() in your R file.
  • DO NOT print any R objects and plots.

You should use the villagers data for all questions.

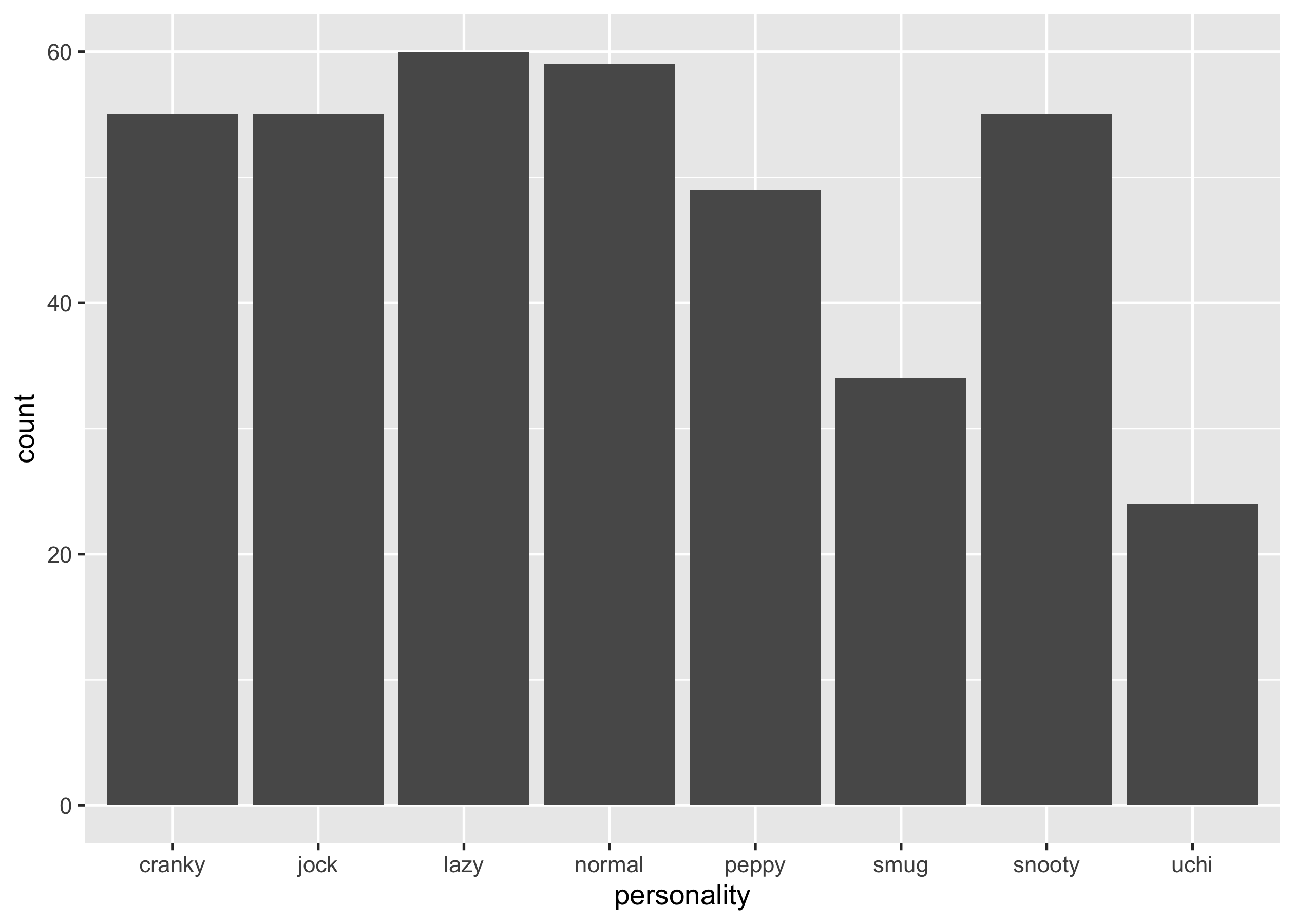

Question 1

Write {ggplot2} code to generate a bar chart that displays the counts of different personalities (personality). You should end up with a ggplot called p1.

p1

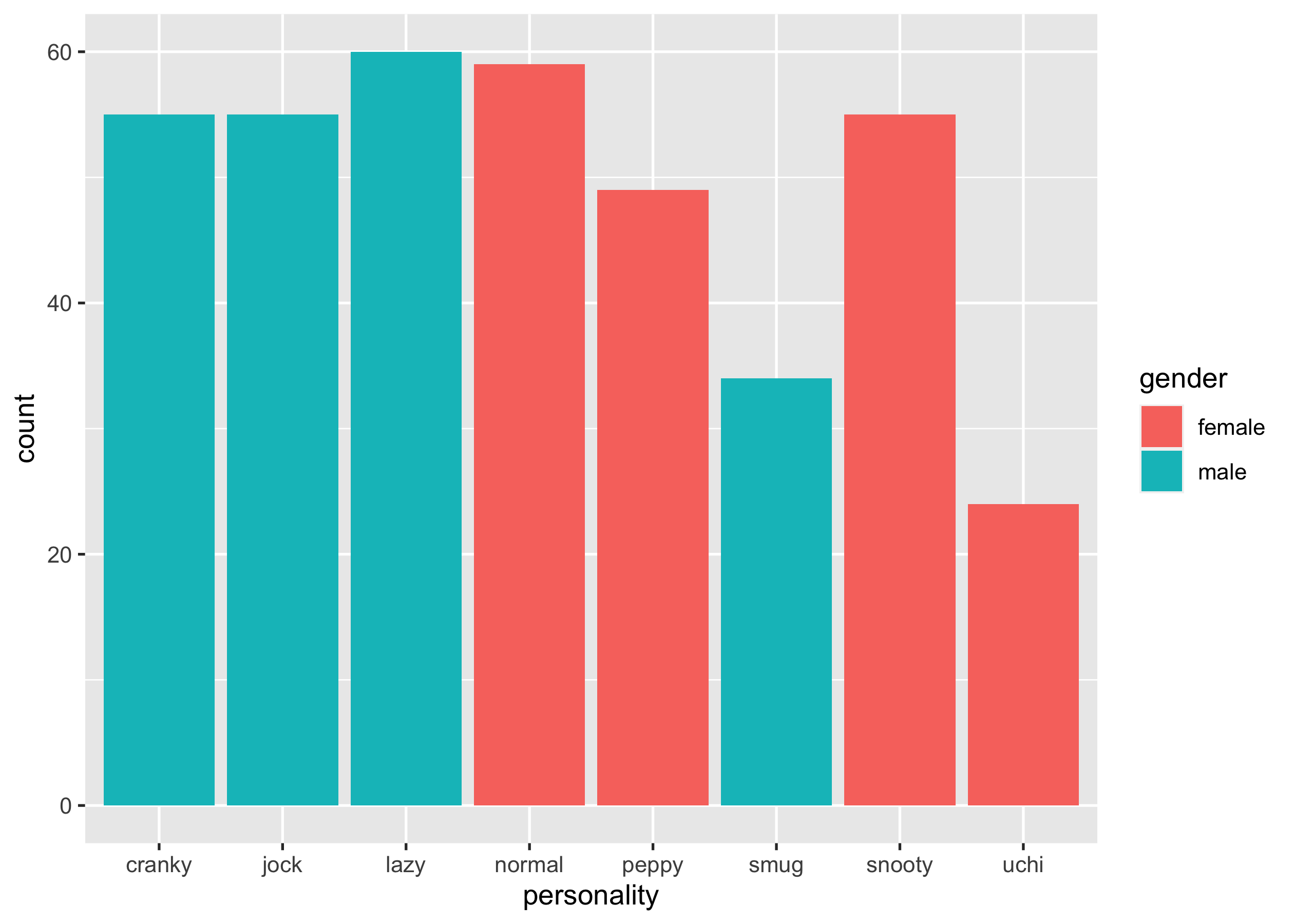

Question 2

Write {ggplot2} code to generate a bar chart that displays the counts of different personalities (personality), with colour filled by gender. You should end up with a ggplot called p2.

p2

Question 3

Write {ggplot2} code to generate a bar chart that displays the counts of different personalities (personality), with colour filled by gender, and border colour set to "black". You should end up with a ggplot called p3.

p3

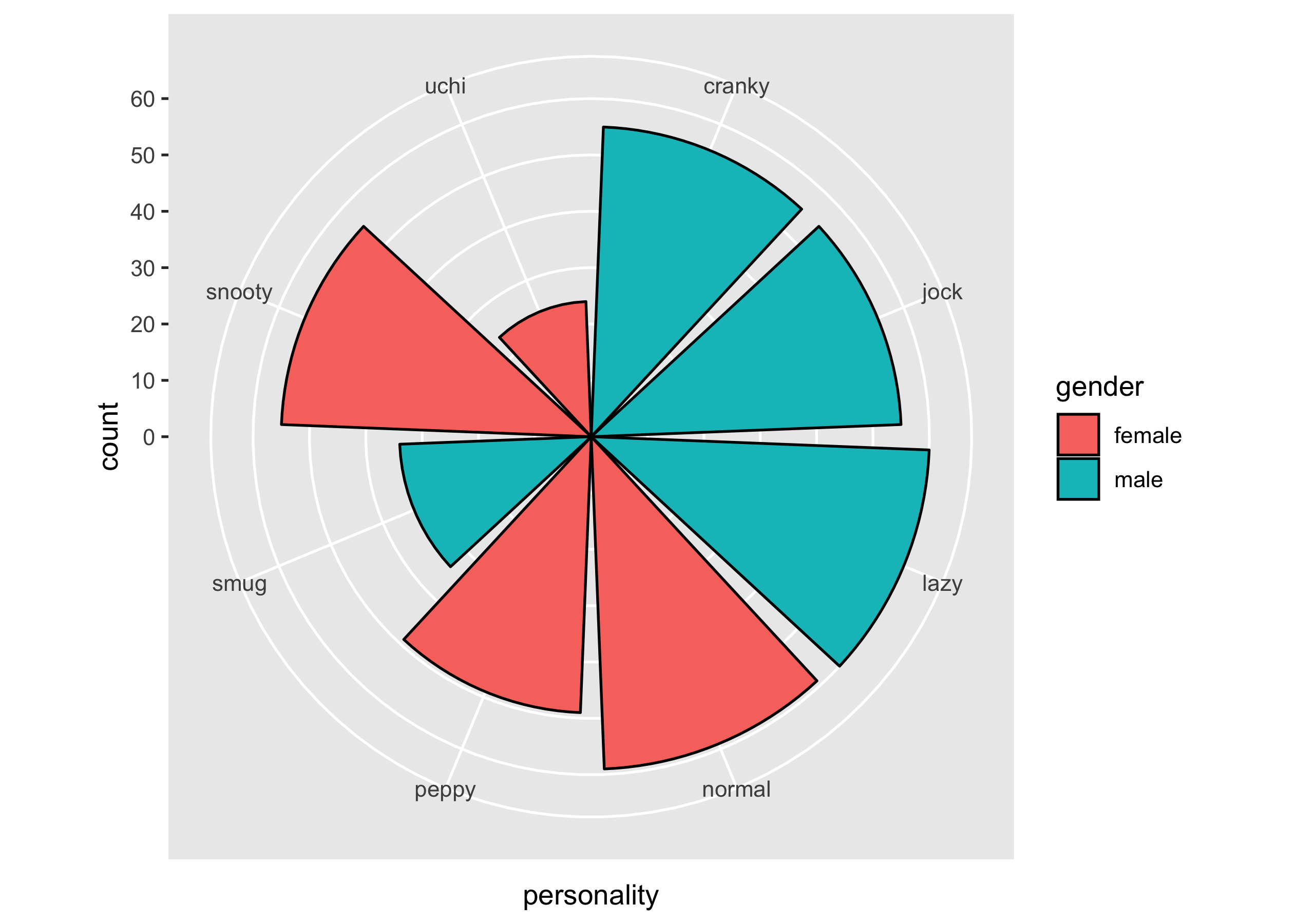

Question 4

Display p3 on polar coordinates. You should end up with a ggplot called p4.

p4

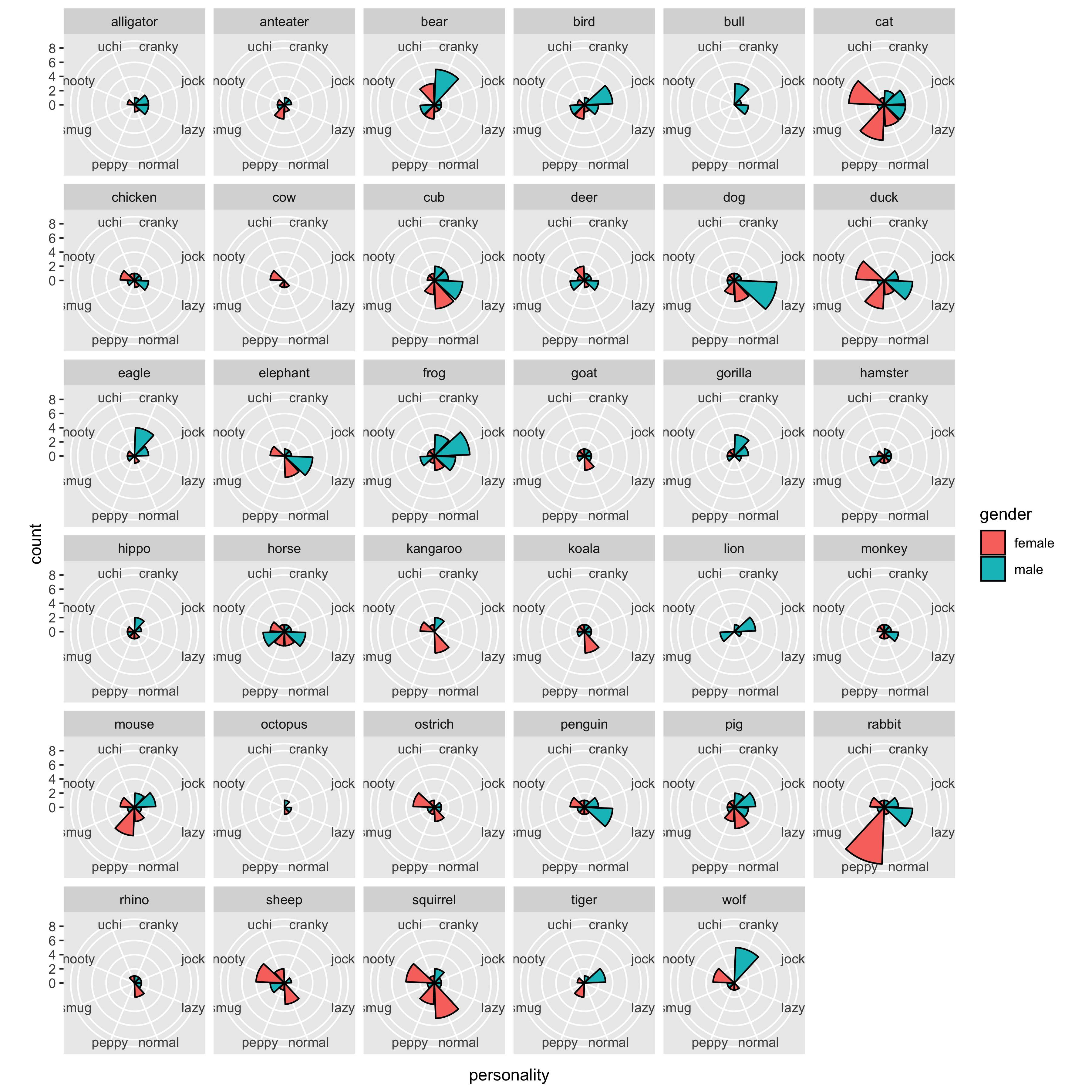

Question 5

Present a small multiples of p4, conditioning on species.

p5

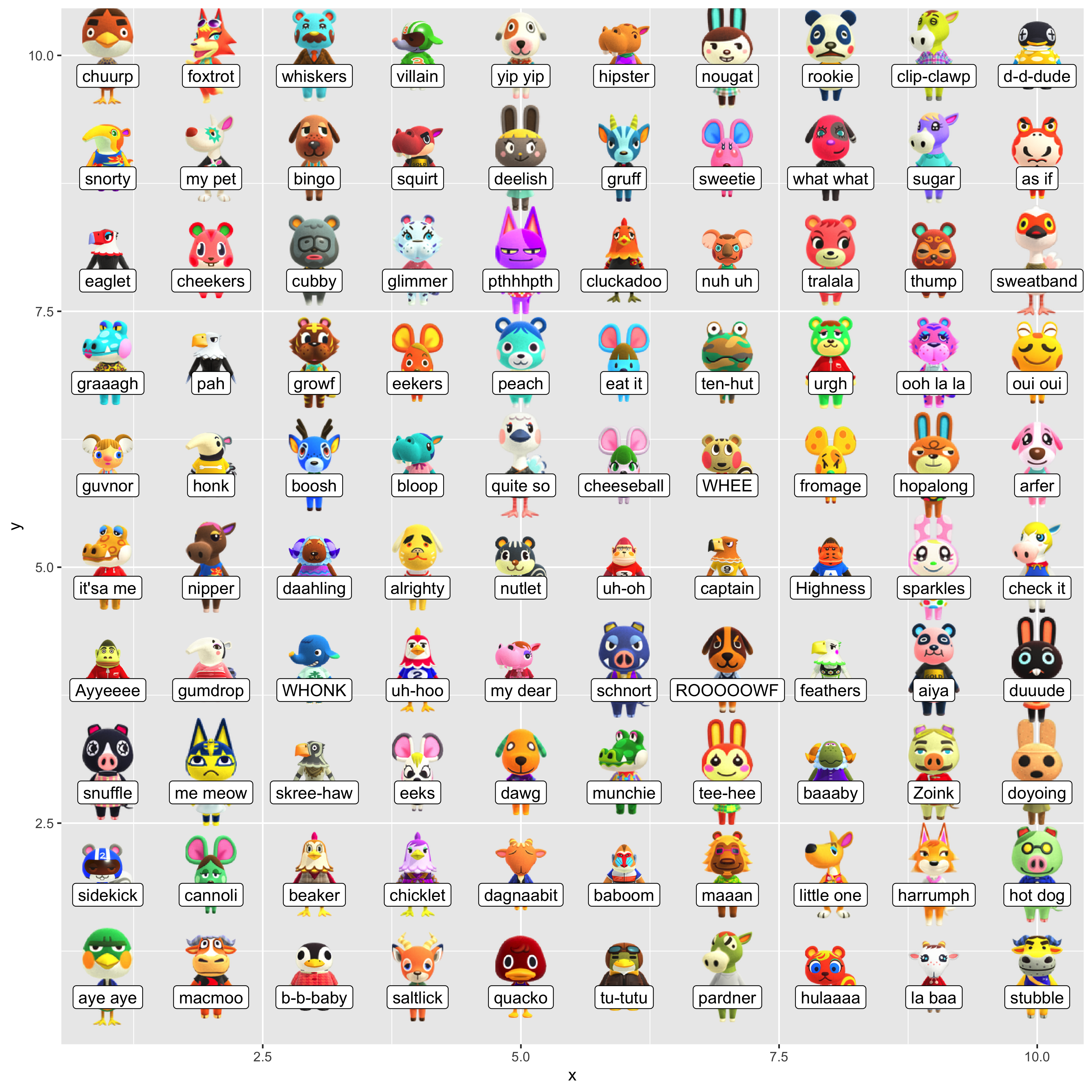

Question4fun (NO marks)

Reproduce the following figure:

  1. subset the first 100 rows from villagers.
  2. create a tibble with columns x and y, that contains all combinations of the two vectors 1:10 and 1:10.
  3. bind the newly created tibble to the villagers subset.
  4. plot these villagers’ images from url, and label them with phrase.
library(ggimage)
